Un semplice esempio urbanistico

due particelle di terreno e quattro usi: non costruito (U), residenza (H), commercio (R), industria (I)

           U   H   R   I
------------------------
Unbuilt	   0   0   0   0
Housing    1   1   2  -1
Retail     0   2  -1   0
Industry   0   0   0   1
------------------------

-------------------------------------------
partic. 1   U U U U H H H H R R R R I I I I
partic. 2   U H R I U H R I U H R I U H R I
-------------------------------------------
utilita     0 1 0 0 1 2 4-1 0 4-2 0 0-1 0 2
-------------------------------------------
Housing     0 1 0 0 1 2 2-1 0 2 0 0 0-1 0 0
Retail      0 0 0 0 0 0 2 0 0 2-2 0 0 0 0 0
Industry    0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2
-------------------------------------------

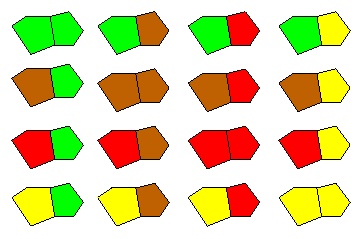

Figura 1.3: Le possibili configurazioni del sistema: verde non costruito, marrone residenza, rosso commercio, giallo industria
